Dry-Claw Type Pumps And Compressors

  • Dry-Claw Type Pumps And Compressors SKU002

    State of the art dry-type pumps have become the preferred option in a diverse range of high and medium vacuum applications. Due to their friction-less design and lubricant free pumping chamber, dry pumps provide higher energy efficiency with minimal maintenance expense. Gases being pumped are discharged free of contamination. Degradation of vacuum pump lubricant is eliminated along with routine service expense. Energy savings of >30% are easily achieved with dry technology.

    Features

    • Simple, modular design
    • Air cooled and direct driven
    • Low maintenance means no wear
    • High efficiency - continuous duty
    • Relief valves included

    Applications

    • Packaging equipment
    • Methane compression
    • Reticulated Medical Vacuum Plant
    • Vacuum drying
    • Vacuum mixing and de-aeration
    • Soil Remediation
    • Vacuum filtration
    • Particle Conveying
    • Printing & Paper
    • Condenser Exhausting
    • Materials Handling
    • Router table holding
    • Tank and pond Aeration
    • Back-flushing
    • Sewage Evacuation

    Models

    Dynavac VCX Series Dry Running Claw Vacuum Pumps

    Model

    Suction Capacity

    (m3/h)

    Ultimate Vacuum

    (kPa)

    Motor Power

    (kW)

    VCX 60 60 -95 1.1
    VCX 100 100 -85 2.2
    VCX 150 150 -90 3
    VCX 250 235 -82 4

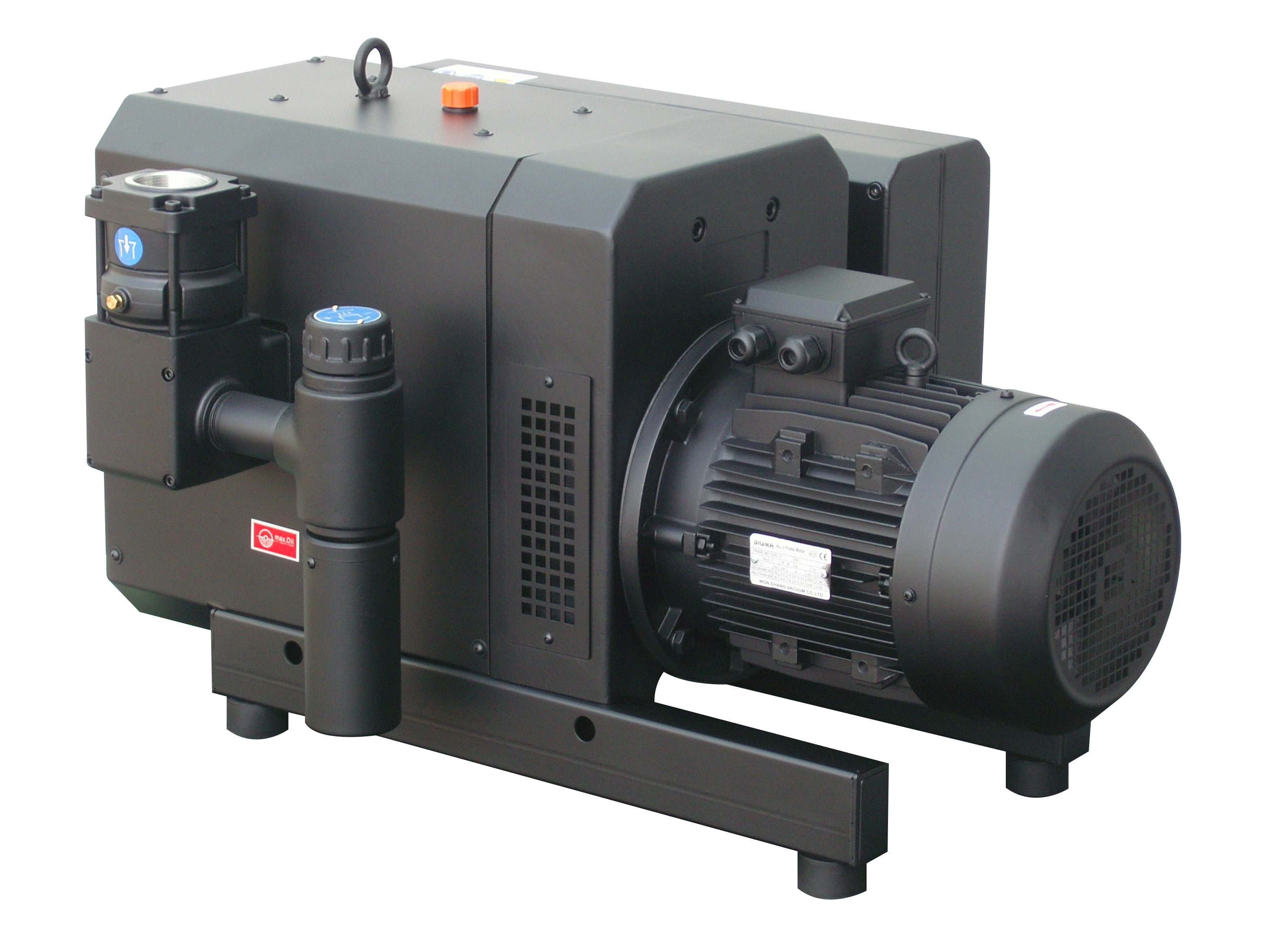

    VCX 300 300 -81 5.5
    VCX 400 385 -77 7.5
    VCX 505 500 -77 9

    Dynavac PCX Series Dry Running Claw Compressors

    Claw pumps are available for both vacuum and positive pressure (blower) applications and are an ideal replacement for liquid ring and rotary vane pumps in many applications.

    VCX Series claw pumps are available for vacuum application up to -95Pa. PCX Series claw pumps are suitable for pressure applications to 220 kPa

    Using a variable speed drive with a Dynavac claw pump can save up to 60% power consumption over lead-lag systems and the number of starts per hour are dramatically reduced. This results in extended life of the pump.

    Model

    Discharge Capacity

    (m3/h)

    Ultimate Pressure

    (kPa)

    Motor Power

    (kW)

    PCX 60 56 200 3

    PCX 100

    PCX 100

    PCX 100

    100

    100

    100

    80

    140

    220

    3

    4

    5.5

    PCX 150

    PCX 150

    150

    150

    120

    200

    5.5

    7.5

    PCX 250

    PCX 250

    235

    235

    100

    200

    7.5

    11

    PCX 300

    PCX 300

    PCX 300

    300

    300

    300

    60

    140

    220

    7.5

    11

    15

    PCX 400

    PCX 400

    PCX 400

    PCX 400

    385

    385

    385

    385

    80

    120

    180

    200

    11

    15

    18.5

    22

    PCX 505

    PCX 505

    PCX 505

    PCX 505

    500

    500

    500

    500

    80

    120

    160

    200

    15

    18.5

    22

    30

    $0.00

Contact Dynapumps for complete pump solutions for the life of the project
