Pump Selection leads to Cost Savings - Austral Bricks, Melbourne Case Study

News

Correct pump selection is vital to run pumps efficiently and effectively for your application. By selecting the correct pump you can potentially save your business thousands of dollars. Dynapumps recently replaced the liquid ring pumps at Austral Bricks in Melbourne with Rotary vane pumps which were much better suited for their application thus leading to a AU$23,390 saving in their overall costs.

Rotary vane pumps

The Application

Vacuum PumpsVacuum pumps can be used for the drying of bricks. Vacuum is applied to the extruder which reduces the amount of moisture in the clay when it is formed into the brick shape. The vacuum level is generally -90kpa and flow rates of around 600m3/hr.

Liquid Ring vacuum pumps are traditionally used throughout the industry but the increase in power and water costs have caused some operators to look for a better solution. Liquid Ring pumps are used because of the high water vapour content and dusty conditions. However the disadvantages are that in summer the seal water temperature in the pump is higher and less vacuum can be achieved which means the bricks take longer to dry due to the amount of moisture still left in the clay. Also the maintenance costs of liquid ring pumps are very high.

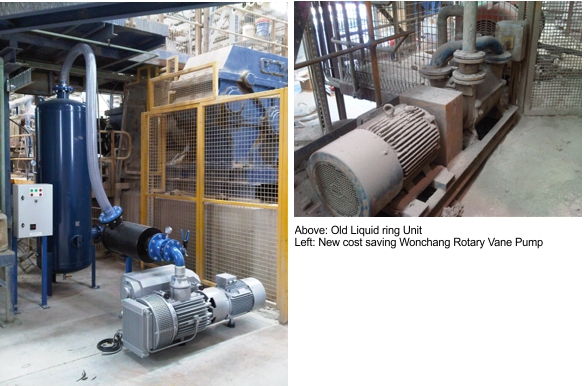

liquid ring pumpsOur Solution

Dynapumps have an understanding of many different types of vacuum pumps and can therefore find the optimum selection for an application. The solution came through the selection of the Rotary Vane pump. This pump is designed so it will be able to handle a large amount of water vapour and with the inclusion of an inlet separator and filter the dust is eliminated. The vacuum level is also increased from -90kpa to around -96kpa. This level is kept steady all year round no matter what the climate is. This also means a saving in drying time which in turn speeds up production. All together the savings in time and money means this solution is the way of the future.

Cost Savings

The previous pumps had running costs of just below AUD$ 39,400/year. See the below table* for the comparative analysis between the liquid ring pump and rotary vane pump at Austral Brick.



 Measure Unit

 Liquid Ring
 Pump

 Rotary Vane
 Pump

 Calculus

 Working hours per year

 h/year

 8760

 8760

 A

 Vacuum pump capacity at 80 mbar

 m3/hr

 450

 450



 Pump oil quantity

 litres

 0

 19



 Oil consumption

 litres/ month

 0

 19



 Oil cost

 AUD/ltr

 0

 5



 Water consumption

 m3/hr

 2.1

 0

 B

 Water Cost

 AUD/ m3

 1

 0

 C

 Water Cost every 8760 hours

 AUD/year

 18396

 0

 X=AxBxC

 Manpower

 Hr/day

 .5

 0.5

 D

 Manpower costs

 AUD/hr

 50

 50

 E

 Manpower costs every 8760 hours

 AUD/year

 9125

 9125

 Y=DxExA/24

 Energy costs

 AUD/kWh

 0.06

 0.06

 F

 Power consumption of the cool tower

 kW

 0.6

 0

 G

 Power consumption of pumps

 kW

 22

 15

 H

 Energy costs every 8760 hours

 AUD/year

 11878.56

 7884

 Z=AxFx(G+H)

 Running costs (water, manpower, energy)

 AUD/year

 39399.56

 17009

 K=X+Y+Z

 Saving every 8760 hours

 AUD/year

 0

 22390.56



 Spares and Maintenance costs every 8760
 hours

 AUD/year

 6000

 5000



 Total saving every 8760 hours

 AUD/year

 0

 23390.56



*Courtesy of Dynapumps, some figures may be an approximate value.
